Description

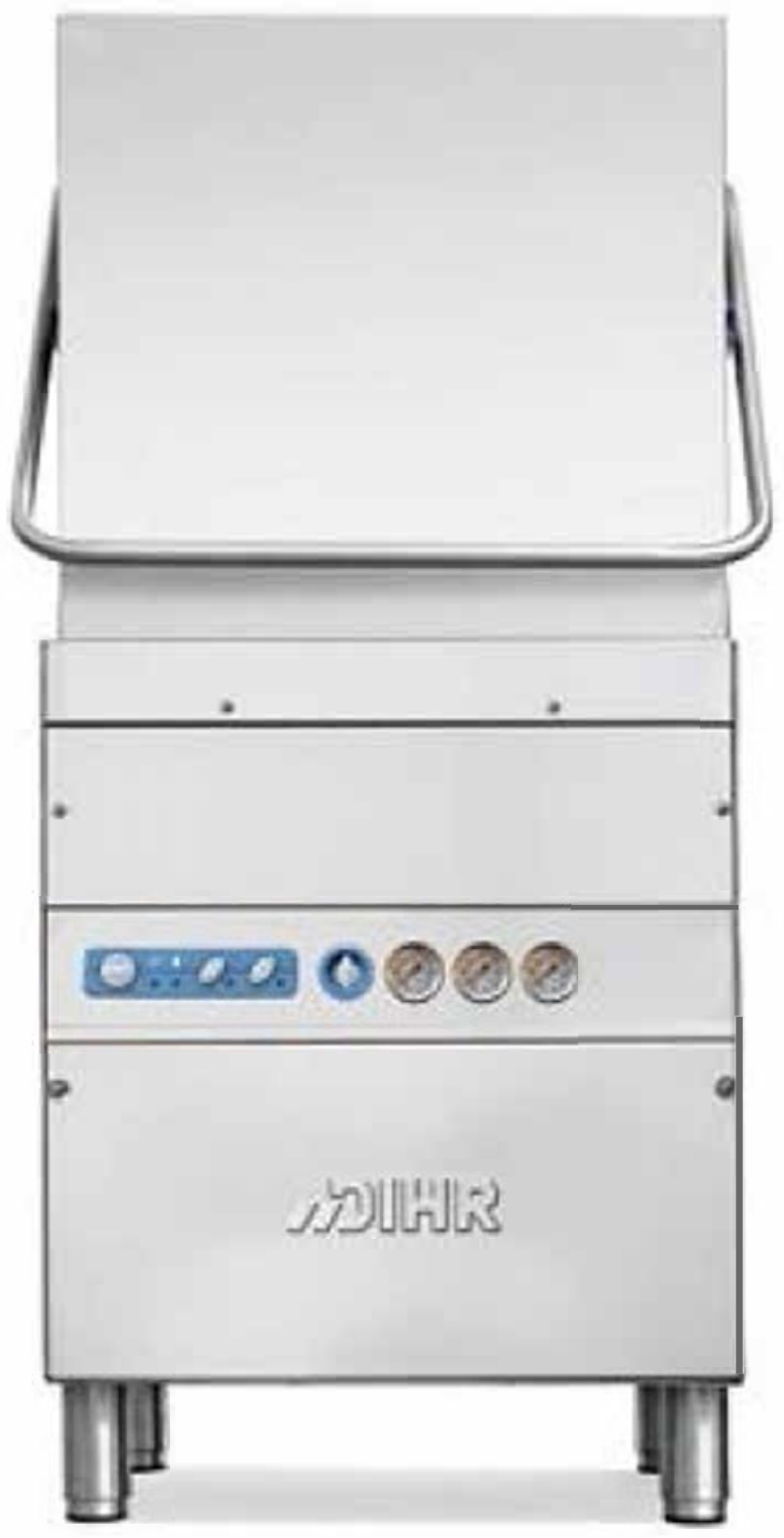

DIHR HT11 Hood Type Upright Commercial Dishwasher
The DIHR hood-type dishwashers offer a wide range of models, from the ones that can be equipped with the most advanced options, to the most innovative types, designed with avant-garde electronics and with all options included. Our products have evolved together with our experience and our customers’ hints and insights. Therefore we are able to produce tailor-made models that fulfil our final customers’ criteria of functionality, reliability and versatility. Our aim is to reduce consumptions in terms of energy, water and chemical products, therefore granting the final user global savings, but also less pollution and waste of natural resources
Features:
- Double walled 304stainless steel structure, 316 grade boiler.
- Two wash cycles 120 and 180 second duration. Partial drain saves water, power and chemicals.
- Overflow and drain system has triple filters to protect the main pump.
- Long lasting split s/s wash and rinse arms are interchangeable for easy assembly after cleaning.
- Hood operated start and stop functions for ease of use.
- Comes complete with detergent, rinse and drain pumps.
- Straight through or corner applications, very simple to change.
- Anti-drip roof design to reduce spotting.
- Anti-vermin bottom panel included.
- Available in 220V or 240V, single or triple phase, single is stocked in Canada, 45.6 amps.
- Comes standard with 70f degree rise booster/heater
- Tank and boiler thermometers
- Easily removable basket support
- Independent stainless steel wash arms and polypropylene and fiber of glass rinse arms
- Certified by ETL, CSA and NSF to the highest standard. Comes with three gauges for wash temp, rinse temp and water pressure.
- Comes with three racks and two cutlery cylinders.
- Three Years Warranty, one year parts and labour, additional two years on major components.
Dimensions |
28 3/8” x 28 15/16” x 56 7/8” inch (74 H open hood) -231 lbs |
Voltage |
220-240V 1ph 60Hz / 220-240V 3ph ~ 60Hz |
Cycles (seconds) |
1 (120) / 2 (180) |
RACKS per Hour (water supply 131°F) |
30 / 20 |
Power Required |
10920 W / 45.6 amps |
Standard |
Rinse-aid, Detergent Dispenser, Drain Pump |
Capacity |
plate Ø 16 1/4" |
rack 20"x20" |
gastronorm 1/1 |
Optional |
Detergent dispenser |
